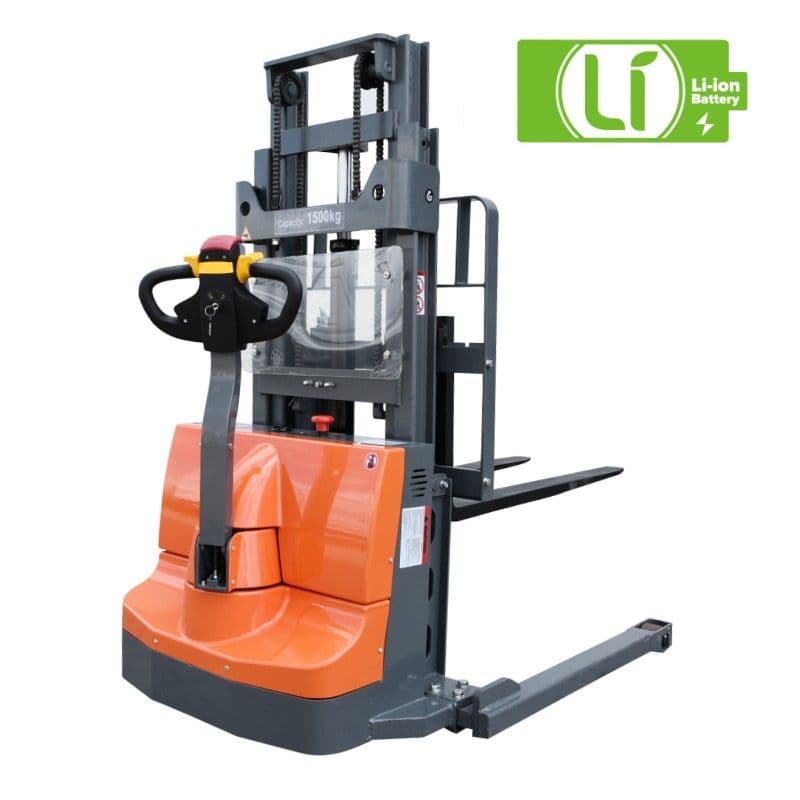

MS15 Electric Straddle Stacker

The MS15 electric straddle stacker is perfect for operations where various different pallet types including closed bottom pallets used.

Full electric lifting, driving, braking functions

1500Kg lift capacity

2800mm lift height.

• Closed height 1510 mm
• Minimum fork height 35 mm
• Fork length 1070 mm
• Load center of gravity 600 kg
• Adjustable fork spacing - max 610 mm
• Maximum travel speed laden/unladen 4.6 / 4.7 km/h
• Lifting capacity 1500 kg
• Total length 1520 mm
• Total width 1140 mm
• Max lifting speed with/without load 75/110 mm/s
• Max lowering speed with/without load 145/100 mm/s
• The maximum lifting height of the transport pallet - 1830 mm
• Roller and wheel tread material Polyurethane
• Weight 570 kg
• Drive motor power 2.2 kW
• Working time3 hours
• Spacing between ramps 957 mm
